Tactical UAV for time critical tasking
WASP is a robust, tube-launched UAV representing next generation technology for semi-autonomous aerial systems. Inherently flexible, it delivers game-changing, cost-effective capability enhancement to a wide range of users. Applications include detector and effector missions.
WASP is man portable and deployed in < 3 seconds. The launcher can be operated physically by a person, or remotely if mounted on a vehicle, infrastructure, or ship. The UAV transitions to conventional multi-rotor flight after an initial rocket launch. Mission dependent, the whole system is
re-usable. It can be stored for many years and remain ready for
rapid use.

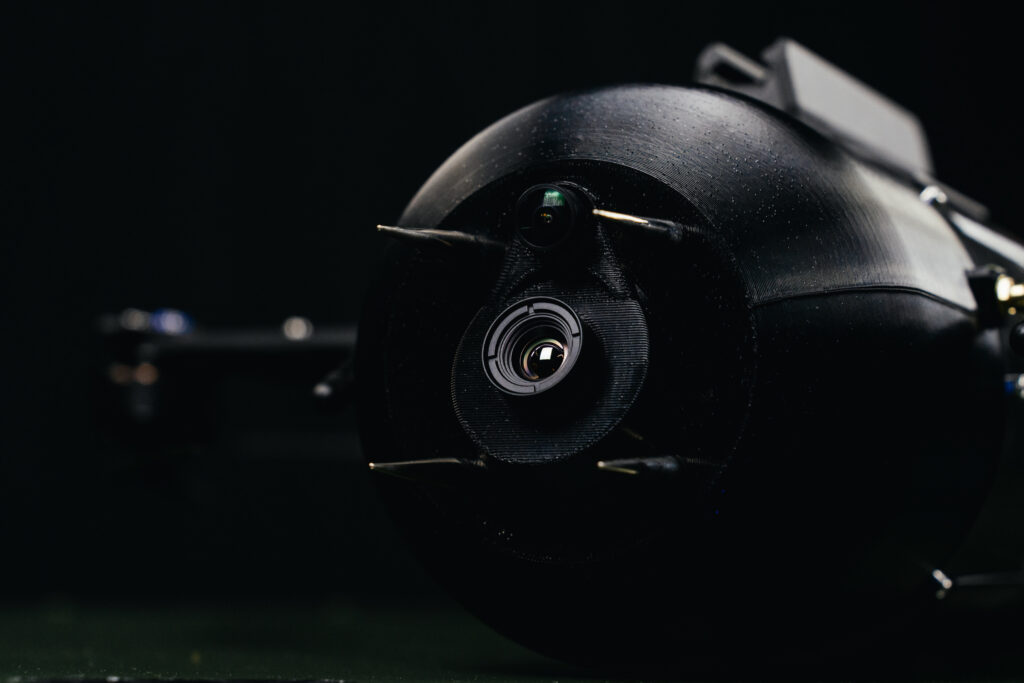

The UAV is equipped with a high-performance gimbal mounted EO/IR camera with range finder, plus a modular payload system up to 1.5kg . The payload can be delivered accurately to 24km. Resilient communications enable shared, real-time feed and hand-over of control options. Open system architecture enables wide interoperability. WASP is swarming capable.
Operational Uses
• Find & Understand. Multi-domain situational awareness and threat assessment.
• Strike. Loitering weapon platform for C-sUAS, ground attack or maritime force protection.
• Sustain. Urgent medical deliveries for preservation of life.
TRUSTED AVIONICS SUPPLIERS »
![Ainstein](https://www.issaerospace.com/wp-content/uploads/2023/07/Ainstein.png)
![ARK Electronics](https://www.issaerospace.com/wp-content/uploads/2023/07/ARK-Electronics.png)
![Cube Pilot](https://www.issaerospace.com/wp-content/uploads/2023/07/Cube-Pilot.png)
![Doodle Labs](https://www.issaerospace.com/wp-content/uploads/2023/07/Doodle-Labs.png)
![Intel](https://www.issaerospace.com/wp-content/uploads/2023/07/Intel.png)
![Lightware](https://www.issaerospace.com/wp-content/uploads/2023/07/Lightware.png)
![Nvidia Developer](https://www.issaerospace.com/wp-content/uploads/2023/07/Nvidia-Developer.png)
![Ouster](https://www.issaerospace.com/wp-content/uploads/2023/07/Ouster.png)
![RF Design](https://www.issaerospace.com/wp-content/uploads/2023/07/RF-Design.png)
![Rotblox](https://www.issaerospace.com/wp-content/uploads/2023/07/Rotblox.png)
![uAvioni](https://www.issaerospace.com/wp-content/uploads/2023/07/uAvioni.png)
![Xsens](https://www.issaerospace.com/wp-content/uploads/2023/07/Xsens.png)
Technical Specification
![](https://www.issaerospace.com/wp-content/uploads/2023/09/WASP.png)
Dimensions
Power Source
Weight
Maximum Payload
MTOW
Maximum Speed
Maximum Flight Altitude
Maximum Flight Time (No Payload)
Maximum Flight Time (With Payload)
138 x 550 mm
Thermal Battery/Rocket Motor
4.9 kg
1.5 kg
6.0 kg
25 m/s
4000m
30 mins
20 mins
